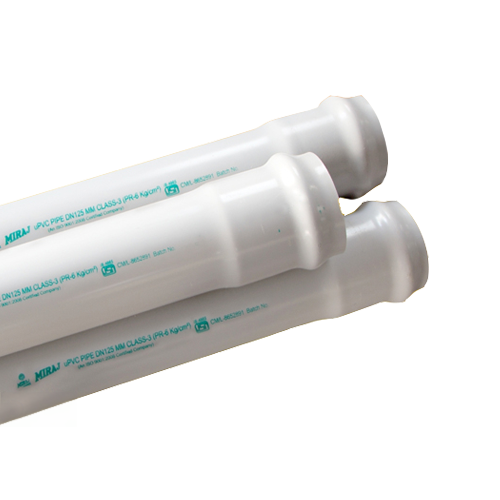

Elastomeric Seal Ring Socket Pipe


Elastomeric Seal Ring Fit Pipes

Specifications

  • Ring Fit at one end
  • Plain at another end
  • Fits easily
  • Available in 20 feet length or can be customized
  • Available in 63 mm to 400 mm diameters
  • Working Pressure
    • 2.5 kgf/cm2
    • 4 kgf/cm2
    • 6 kgf/cm2
    • 8 kgf/cm2
    • 10 kgf/cm2
    • 12.5 kgf/cm2

Attributes

  • Reliable Leak Proof Joints.
  • Can absorb linear expansion and contraction
  • No need of solvent cement
  • Corrosion, Chemical and Biological resistant

PVC Pipe Fittings Manufacturers and suppliers


PVC Pipe Fittings


Nominal OD

Inside Diameter of Socket, D1

Inside Diameter of Beading, D2

Neck of Socket
' A '
Min

Length of Beading
' B '
Max

Minimum Depth of Engagement
' C '

Socket Length
Min

DN

Min

Max

Min

Max

63

63.60

64.30

78.20

78.80

15.0

25.0

64.0

104.0

75

75.60

76.30

92.30

93.00

20.0

31.0

67.0

118.0

90

90.70

91.50

111.00

111.80

20.0

38.0

70.0

128.0

110

110.80

111.70

132.50

133.40

20.0

43.0

75.00

140.0

125

125.90

126.90

147.40

148.40

21.0

45.0

78.00

146.0

140

140.90

141.90

164.20

165.20

22.0

47.0

81.00

152.0

160

161.00

162.10

186.00

187.10

24.0

51.0

86.00

163.0

180

181.10

182.20

207.60

208.80

25.0

56.0

90.00

173.0

200

201.20

202.30

227.60

228.80

26.0

56.0

94.00

178.0

225

226.40

227.50

254.50

255.70

28.0

62.0

100.00

192.0

250

251.50

252.60

282.60

284.00

29.0

66.5

105.00

202.5

280

281.60

283.00

314.70

316.10

31.0

72.5

112.00

217.5

315

316.80

318.30

351.30

352.90

32.0

77.5

118.00

229.5

355

357.00

358.70

395.20

397.00

33.0

84.0

124.00

245.0

400

402.20

404.10

442.50

444.50

35.0

90.0

130.00

261.0
