CPVC Fittings
CPVC Fittings
- Socket

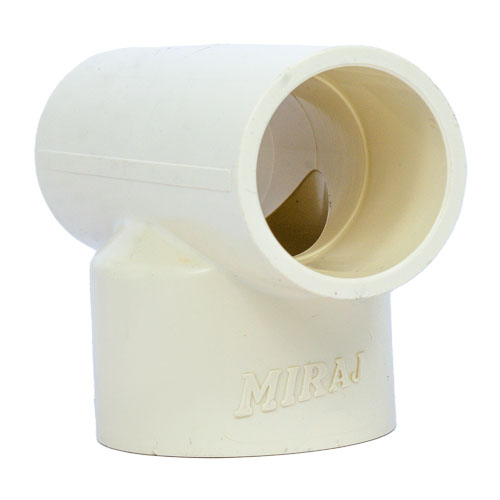

- Tee
- Elbow – 45 & 90 degree
- FAPT
- MAPT
- FABT
- MABT

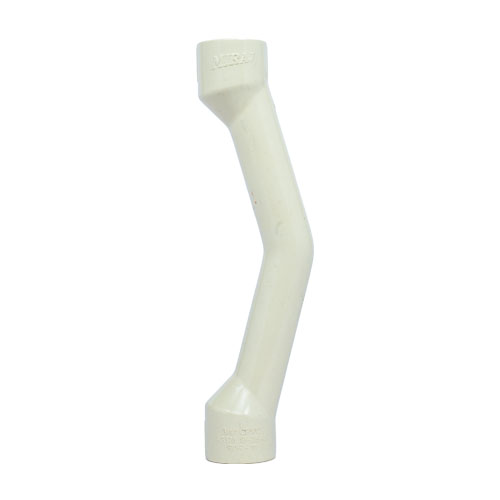

- Step over Bend
- Ball Valve
- Brass Elbow
- Brass Tee
- Reducing Bush

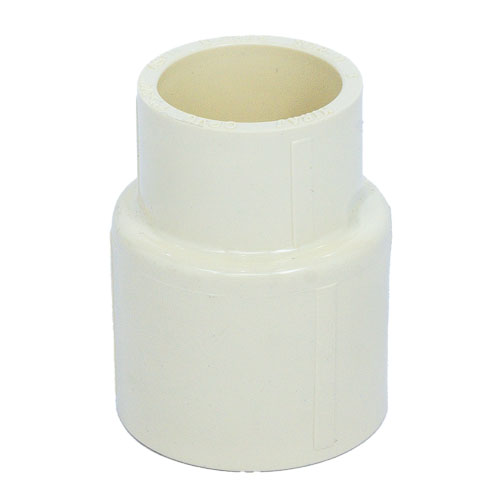

- Reducing Socket
- Reducing Tee

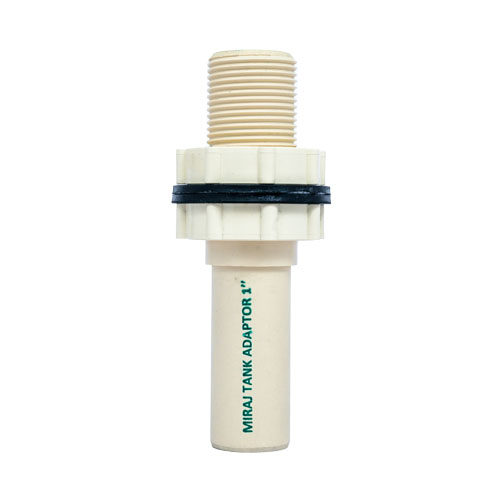

- Tank Adaptor

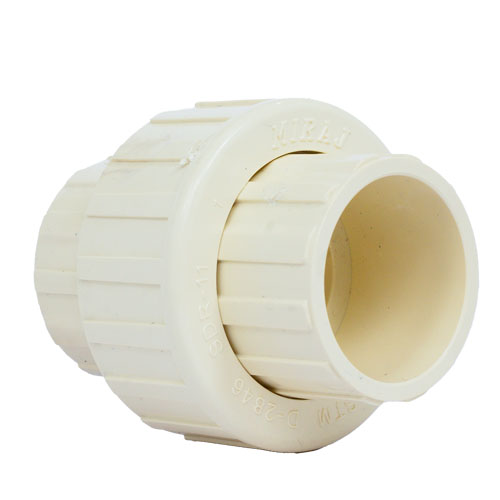

- Union
- End Cap
- Cross Tee
DIMENSIONS FOR cPVC FITTING
|
SR. NO. |
SIZE |
DIMENSIONS |
||||
|
Socket ID |
Wall Thickness |
Socket Length Min. |
||||
|
At Entrance |
At Bottom |
At Entrance |
At Bottom |
|||
|
1 |
½" |
16.0 - 16.16 |
15.64 - 15.80 |
1.73 |
2.59 |
12.70 |
|
2 |
¾" |
22.37 - 22.53 |
22.02 - 22.18 |
2.03 |
2.59 |
17.78 |
|
3 |
1" |
28.75 - 28.91 |
28.39 - 28.55 |
2.59 |
2.59 |
22.86 |
|
4 |
1¼" |
35.12 - 35.28 |
34.77 - 34.93 |
3.18 |
3.18 |
27.94 |
|
5 |
1½" |
41.56 - 41.76 |
41.10 - 41.30 |
3.76 |
3.76 |
33.02 |
|
6 |
2" |
54.28 - 54.48 |
53.82 - 54.02 |
4.90 |
4.90 |
43.18 |
