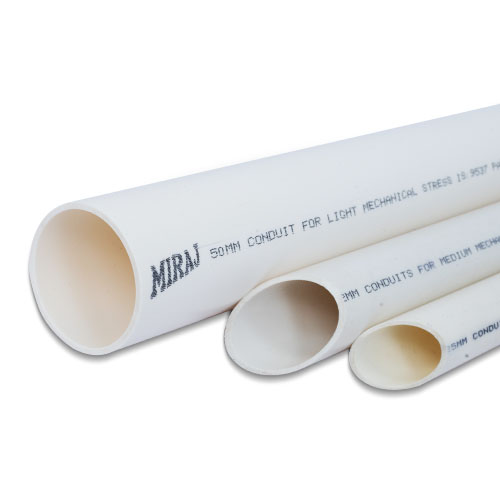

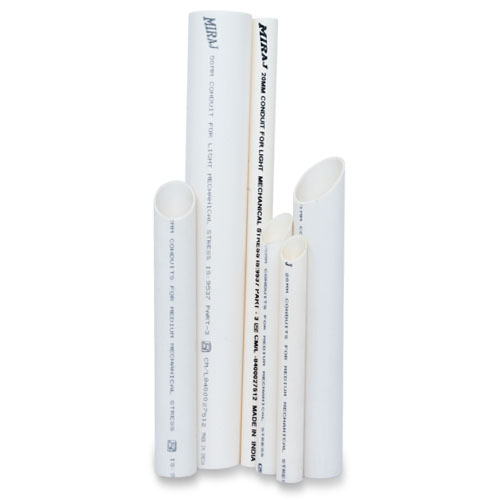

Conduit Pipes
Conduit Pipes
Concealed electrical wiring has become the norm of the day in modern construction. For safety and security of the installation, conduit pipes of different strengths are used to encase the wiring and placed in grooves carved on the brick surface, before the walls and ceilings are plastered and cemented.
Since the conduit pipes are inlaid, they should remain intact for the life of the building. In this aspect, a brand that strands out from crowd is MIRAJ ensuring safety from electrical and fire hazards, MIRAJ conduit pipes also stand the test of time against all kinds of weather conditions.
Specifications :
- Range : 16 mm to 63 mm
- Type : Light, Medium & Heavy mechanical Stress
Conduit Fittings :
- BEND
- COUPLER
Application/उपयोग :
Used in electrical wiring purposes within residential complexes, offices etc.
आवासीय परिसरों, कार्यालयों आदि के भीतर विद्युत तारों के प्रयोजनों में उपयोग किया जाता है।
Advantages/लाभ (फायदा):
- Non conductor of Electricity & low thermal conductivity./अविधुतीय और काम तापीय बिजली के परिवहन में उपयोगी
- Because of the smooth interior surface, wire pulling is so easily done./ चिकनी आंतरिक सतह के कारण, तार खींचने का काम इतनी आसानी से होता है |
- Light weight material./वजन में हल्का है|
- Fire retardant./अग्निरोधी
- Corrosion resistant./जंग प्रतिरोधी।
- High tensile and impact strengths./उच्च तन्यता क्षमता और मजबूत
Conduit Pipe Dimension Chart (As Per IS 9537 Part III)
|
Size |
Light Mechanical Stress |
Medium Mechanical Stress |
Heavy Mechanical Stress |
Socket |
|||||||
|
ID of Pipe |
Wall Thickness |
ID of Pipe |
Wall Thickness |
ID of Pipe |
Wall Thickness |
OD |
ID |
||||
|
Min |
Min |
Max |
Min |
Min |
Max |
Min |
Min |
Max |
Max. |
Range |
|
|
16 |
13.7 |
1.00 |
1.15 |
13.0 |
1.35 |
1.50 |
12.2 |
1.75 |
1.90 |
20.1 |
16.1 - 16.3 |
|
20 |
17.4 |
1.15 |
1.30 |
16.9 |
1.40 |
1.55 |
15.8 |
1.95 |
2.10 |
24.5 |
20.1 - 20.3 |
|
25 |
22.1 |
1.25 |
1.45 |
21.4 |
1.60 |
1.80 |
20.6 |
2.00 |
2.20 |
29.8 |
25.1 - 25.4 |
|
32 |
28.6 |
1.50 |
1.70 |
27.8 |
1.90 |
2.10 |
26.6 |
2.50 |
2.70 |
37.8 |
32.1 - 32.4 |
|
40 |
35.8 |
1.9 |
2.1 |
35.4 |
2.1 |
2.3 |
34.4 |
2.6 |
2.8 |
46.1 |
40.1 – 40.5 |
|
50 |
45.1 |
2.2 |
2.45 |
44.3 |
2.6 |
2.85 |
43.2 |
3.15 |
3.4 |
57.3 |
50.1 – 50.5 |
|
63 |
57.0 |
2.7 |
3.00 |
- |
- |
- |
- |
- |
- |
- |
63.1 – 63.6 |
