MDPE Pipes
MDPE Pipes

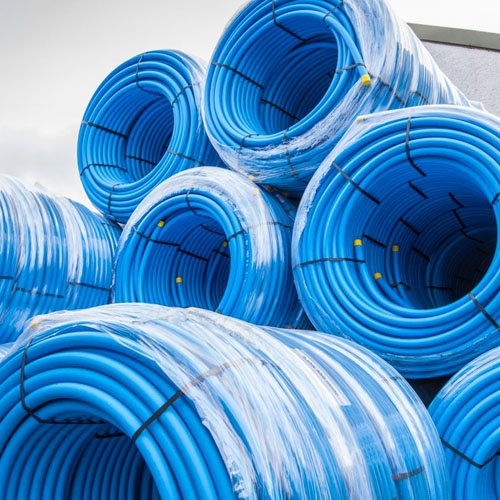

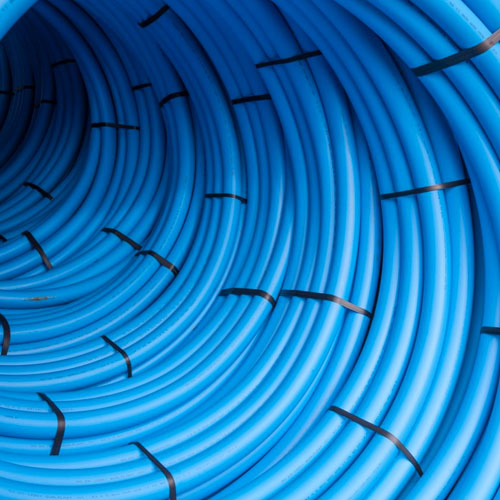

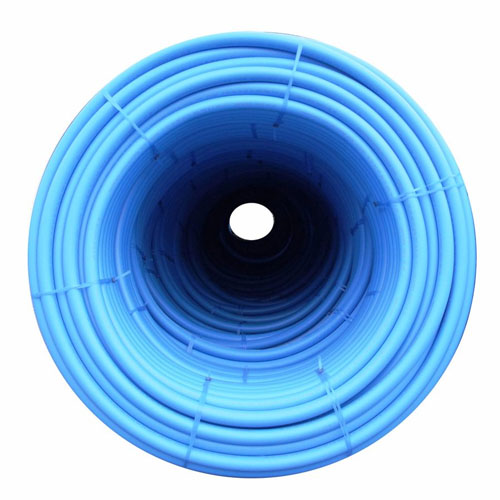

Miraj Medium Density Polyethylene pipe (MDPE) is light weight, flexible and durable piping system which is manufactured within the world class Quality Management Systems as per ISO 9001-2008.
Product Range – 20 mm to 315 mm
-
Corrosion Free
-
Crack Resistant
-
Easy Installation
-
Consistent Performance
BENEFITS/लाभ:
- Light weight, Flexible and durable./ हल्का वजन, लचीला और टिकाऊ।
- Crack resistant./दरार प्रतिरोधी
- Robust construction with high impact strength./मजबूत बनावट और उच्च कार्य क्षमता
- Suitable for cold and waste water distribution system./ठन्डे और उपशिष्ट गंदे पानी के प्रवाह में उपयोगी है |
- Low friction losses due to excellent smooth internal surface./उत्कृष्ट चिकनी आंतरिक सतह के कारण कम घर्षण होता है और प्रवाह आसानी से होता है |
- Resistant to chemical reaction, bacterial growth, corrosion, rusting etc./रासायनिक प्रतिक्रिया, जीवाणु वृद्धि, संक्षारण, जंग आदि के लिए प्रतिरोधी है |
MDPE PE80 Dimension Chart (As Per ISO 4427)
|
SIZE / OD |
OD |
PN 25 |
PN 20 |
PN 16 |
PN 12.5 |
PN 10 |
PN08 |
|||||||
|
Wall Thick |
Wall Thick |
Wall Thick |
Wall Thick |
Wall Thick |
Wall Thick |
|||||||||
|
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
|
|
16 + 0.3 |
16.0 |
16.3 |
3.00 |
3.40 |
2.30 |
2.70 |
2 |
2.3 |
_ |
_ |
_ |
_ |
_ |
_ |
|
20 + 0.3 |
20.0 |
20.3 |
3.40 |
3.90 |
3.00 |
3.40 |
2.3 |
2.7 |
2 |
2.3 |
_ |
_ |
_ |
_ |
|
25 + 0.3 |
25.0 |
25.3 |
4.20 |
4.80 |
3.50 |
4.00 |
3 |
3.4 |
2.3 |
2.7 |
2.0 |
2.3 |
_ |
_ |
|
32 + 0.3 |
32.0 |
32.3 |
5.40 |
6.10 |
4.40 |
5.00 |
3.6 |
4.1 |
3.0 |
3.4 |
2.4 |
2.8 |
2.0 |
2.3 |
|
40 + 0.4 |
40.0 |
40.4 |
6.70 |
7.50 |
5.5 |
6.20 |
4.5 |
5.1 |
3.7 |
4.2 |
3.0 |
3.5 |
2.4 |
2.8 |
|
50 + 0.4 |
50.0 |
50.4 |
8.30 |
9.30 |
6.9 |
7.7 |
5.6 |
6.3 |
4.6 |
5.2 |
3.7 |
4.2 |
3.0 |
3.4 |
|
63 + 0.4 |
63.0 |
63.4 |
10.5 |
11.7 |
8.6 |
9.6 |
7.1 |
8.0 |
5.8 |
6.5 |
4.7 |
5.3 |
3.8 |
4.3 |
|
75 + 0.5 |
75.0 |
75.5 |
12.5 |
13.9 |
10.3 |
11.5 |
8.4 |
9.4 |
6.8 |
7.6 |
5.6 |
6.3 |
4.5 |
5.1 |
|
90 + 0.6 |
90.0 |
90.6 |
15.0 |
16.7 |
12.3 |
13.7 |
10.1 |
11.3 |
8.2 |
9.2 |
6.7 |
7.5 |
5.4 |
6.1 |
|
110 + 0.7 |
110.0 |
110.7 |
18.3 |
20.3 |
15.1 |
16.8 |
12.3 |
13.7 |
10.0 |
11.1 |
8.1 |
9.1 |
6.6 |
7.4 |
|
125 + 0.8 |
125.0 |
125.8 |
20.8 |
23.0 |
17.1 |
19.0 |
14.0 |
15.6 |
11.4 |
12.7 |
9.2 |
10.3 |
7.4 |
8.3 |
|
140 + 0.9 |
140.0 |
140.9 |
23.3 |
25.8 |
19.2 |
21.3 |
15.7 |
17.4 |
12.7 |
14.1 |
10.3 |
11.5 |
8.3 |
9.3 |
|
160 + 1.0 |
160.0 |
161.0 |
26.6 |
29.4 |
21.9 |
24.2 |
17.9 |
19.8 |
14.6 |
16.2 |
11.8 |
13.1 |
9.5 |
10.6 |
|
180 + 1.1 |
180.0 |
181.1 |
29.9 |
33.0 |
24.6 |
27.2 |
20.1 |
22.3 |
16.4 |
18.2 |
13.3 |
14.8 |
10.7 |
11.9 |
|
200 + 1.2 |
200.0 |
201.2 |
33.2 |
36.7 |
27.4 |
30.3 |
22.4 |
24.8 |
18.2 |
20.2 |
14.7 |
16.3 |
11.9 |
13.2 |
|
225 + 1.4 |
225.0 |
226.4 |
37.4 |
41.3 |
30.8 |
34.0 |
25.2 |
27.9 |
20.5 |
22.7 |
16.6 |
18.4 |
13.4 |
14.9 |
|
250 + 1.5 |
250.0 |
251.5 |
41.5 |
45.8 |
34.2 |
37.8 |
27.9 |
30.8 |
22.7 |
25.1 |
18.4 |
20.4 |
14.8 |
16.4 |
|
280 + 1.7 |
280.0 |
281.7 |
46.5 |
51.3 |
38.3 |
42.3 |
31.3 |
34.6 |
25.4 |
28.1 |
20.6 |
22.8 |
16.6 |
18.1 |
|
315 + 1.9 |
315.0 |
316.9 |
52.3 |
57.7 |
43.1 |
47.6 |
35.2 |
38.9 |
28.6 |
31.6 |
23.2 |
25.7 |
18.7 |
20.7 |
|
355 + 2.2 |
355.0 |
357.2 |
59.0 |
65.0 |
48.5 |
53.5 |
39.7 |
43.8 |
32.2 |
35.6 |
26.1 |
28.9 |
21.1 |
23.4 |
|
400 + 2.4 |
400.0 |
402.4 |
0.0 |
0.0 |
54.7 |
60.3 |
44.7 |
49.3 |
36.3 |
40.1 |
29.4 |
32.5 |
23.7 |
26.2 |
MDPE PE100 Dimension Chart (As Per ISO 4427)
|
SIZE / OD |
OD |
PN 25 |
PN 20 |
PN 16 |
PN 12.5 |
PN 10 |
||||||
|
Wall Thick |
Wall Thick |
Wall Thick |
Wall Thick |
Wall Thick |
||||||||
|
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
|
|
16 + 0.3 |
16.0 |
16.3 |
2.30 |
2.70 |
2.00 |
2.30 |
_ |
_ |
_ |
_ |
_ |
_ |
|
20 + 0.3 |
20.0 |
20.3 |
3.00 |
3.40 |
2.30 |
2.70 |
2 |
2.3 |
_ |
_ |
_ |
_ |
|
25 + 0.3 |
25.0 |
25.3 |
3.50 |
4.00 |
3.00 |
3.40 |
2.3 |
2.7 |
2.0 |
2.3 |
_ |
_ |
|
32 + 0.3 |
32.0 |
32.3 |
4.40 |
5.00 |
3.60 |
4.10 |
3.0 |
3.4 |
2.4 |
2.8 |
2.0 |
2.3 |
|
40 + 0.4 |
40.0 |
40.4 |
5.50 |
6.20 |
4.5 |
5.10 |
3.7 |
4.2 |
3.0 |
3.5 |
2.4 |
2.8 |
|
50 + 0.4 |
50.0 |
50.4 |
6.90 |
7.70 |
5.6 |
6.3 |
4.6 |
5.2 |
3.7 |
4.2 |
3.0 |
3.4 |
|
63 + 0.4 |
63.0 |
63.4 |
8.6 |
9.6 |
7.1 |
8.0 |
5.8 |
6.5 |
4.7 |
5.3 |
3.8 |
4.3 |
|
75 + 0.5 |
75.0 |
75.5 |
10.3 |
11.5 |
8.4 |
9.4 |
6.8 |
7.6 |
5.6 |
6.3 |
4.5 |
5.1 |
|
90 + 0.6 |
90.0 |
90.6 |
12.3 |
13.7 |
10.1 |
11.3 |
8.2 |
9.2 |
6.7 |
7.5 |
5.4 |
6.1 |
|
110 + 0.7 |
110.0 |
110.7 |
15.1 |
16.8 |
12.3 |
13.7 |
10.0 |
11.1 |
8.1 |
9.1 |
6.6 |
7.4 |
|
125 + 0.8 |
125.0 |
125.8 |
17.1 |
19.0 |
14.0 |
15.6 |
11.4 |
12.7 |
9.2 |
10.3 |
7.4 |
8.3 |
|
140 + 0.9 |
140.0 |
140.9 |
19.2 |
21.3 |
15.7 |
17.4 |
12.7 |
14.1 |
10.3 |
11.5 |
8.3 |
9.3 |
|
160 + 1.0 |
160.0 |
161.0 |
21.9 |
24.2 |
17.9 |
19.8 |
14.6 |
16.2 |
11.8 |
13.1 |
9.5 |
10.6 |
|
180 + 1.1 |
180.0 |
181.1 |
24.6 |
27.2 |
20.1 |
22.3 |
16.4 |
18.2 |
13.3 |
14.8 |
10.7 |
11.9 |
|
200 + 1.2 |
200.0 |
201.2 |
27.4 |
30.3 |
22.4 |
24.8 |
18.2 |
20.2 |
14.7 |
16.3 |
11.9 |
13.2 |
|
225 + 1.4 |
225.0 |
226.4 |
30.8 |
34.0 |
25.2 |
27.9 |
20.5 |
22.7 |
16.6 |
18.4 |
13.4 |
14.9 |
|
250 + 1.5 |
250.0 |
251.5 |
34.2 |
37.8 |
27.9 |
30.8 |
22.7 |
25.1 |
18.4 |
20.4 |
14.8 |
16.4 |
|
280 + 1.7 |
280.0 |
281.7 |
38.3 |
42.3 |
31.3 |
34.6 |
25.4 |
28.1 |
20.6 |
22.8 |
16.6 |
18.1 |
|
315 + 1.9 |
315.0 |
316.9 |
43.1 |
47.6 |
35.2 |
38.9 |
28.6 |
31.6 |
23.2 |
25.7 |
18.7 |
20.7 |
|
355 + 2.2 |
355.0 |
357.2 |
48.5 |
53.5 |
39.7 |
43.8 |
32.2 |
35.6 |
26.1 |
28.9 |
21.1 |
23.4 |
|
400 + 2.4 |
400.0 |
402.4 |
54.7 |
60.3 |
44.7 |
49.3 |
36.3 |
40.1 |
29.4 |
32.5 |
23.7 |
26.2 |
