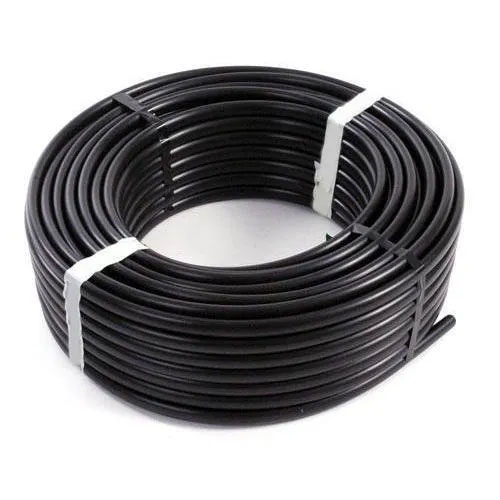

Lateral Pipes
Lateral Pipes
Miraj Lateral pipes are manufactured under specification IS 12786 of Bureau of Indian Standards. They are approved by Horticulture Dept.
PRODUCT RANGE :
12 mm – 32 mm
Applications :
Used in drip irrigation system and mini sprinkler system.
ड्रिप सिंचाई प्रणाली और मिनी स्प्रिंकलर प्रणाली में उपयोग किया जाता है।
-
Irrigation System
-
Crack Resistant
-
Easy Installation
-
Consistent Performance
LATERAL PIPE Dimension Chart (As Per IS 12786)
|
SIZE / OD |
OD |
Class - 1 |
Class - 2 |
Class - 3 |
||||
|
Wall Thickness |
Wall Thickness |
Wall Thickness |
||||||
|
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
|
|
12 +0.2 |
12.0 |
12.2 |
0.6 |
0.8 |
0.9 |
1.1 |
1.2 |
1.4 |
|
16 +0.2 |
16.0 |
16.2 |
0.8 |
1.0 |
1.1 |
1.3 |
1.4 |
1.6 |
|
20 +0.2 |
20.0 |
20.2 |
0.9 |
1.1 |
1.2 |
1.4 |
1.5 |
1.7 |
|
25 +0.3 |
25.0 |
25.3 |
1.2 |
1.6 |
1.7 |
2.0 |
2.1 |
2.4 |
|
32 +0.3 |
32.0 |
32.3 |
1.5 |
1.9 |
2.0 |
2.4 |
2.5 |
2.9 |
