HDPE Sprinkler
HDPE Sprinkler
Miraj Pipes & Fittings Pvt. Ltd. is a reliable name in supplying HDPE Sprinklers. Our range of HDPE Sprinklers is widely acclaimed by the clients for effective performance and durability. We also provide sprinkler system, which comprises of a set of pipes Fittings, Clamps, Nozzle and other accessories. Apart from this, HDPE Sprinklers are made available to the esteemed clients at leading market prices.Miraj Sprinkler Pipes are manufactured from High Density Poly Ethylene Polymers i.e. PE 63 & are manufactured as per specification No IS 14151 - 2008 (Part II) of the Bureau of Indian Standards.
Product Range :
Available in Butt, Fusion & Friction Welding, ranging 63 mm to 110 mm diameter with complete range of fittings
Accessories :

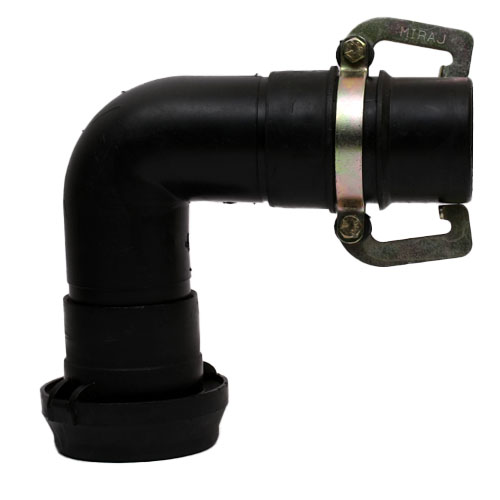

- Coupled Bend
- Coupled Tee
- Pump Connecting Nipple

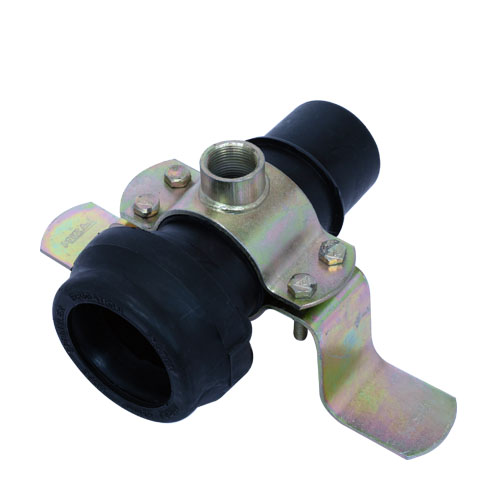

- Sprinkler Attachment Foot Button
- End Cap
- Riser Pipe

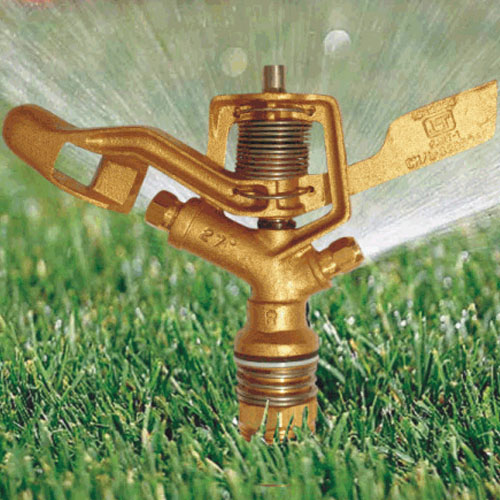

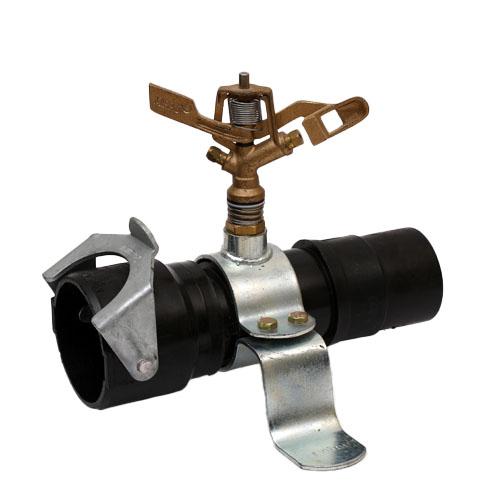

- Sprinkler Nozzle
Benefits :
- Sprinkler System can irrigate 2 to 3 times more farm land in the same quantum of water./ स्प्रिंकलर सिस्टम से पानी की एक ही मात्रा में 2 से 3 गुना अधिक खेत की सिंचाई की जा सकती है।
- Helps in cleaning the surface of plants thereby helping them in easy photosynthesis./ पौधों की सतह को साफ करने में मदद करता है जिससे उन्हें आसान प्रकाश संश्लेषण में मदद मिलती है।
- Results in greater yield./ अधिक उपज में परिणाम
- In winter season, sprinkler system saves the surface of the plants from accumulation of frozen water. सर्दियों के मौसम में, स्प्रिंकलर सिस्टम पौधों की सतह पर बर्फ जमा होने से बचाता है
- In summers, sprinkler system spreads the water in the farmland uniformly and saves the plants from water clogging & scarcity./ग्रीष्मकाल(गर्मियों ) में, छिड़काव प्रणाली खेत में पानी को समान रूप से फैलाती है और पानी का जमाव और बिखराव से पौधों को बचाती है |
Sprinkler pipe dimension chart (As Per IS 14151)
|
SIZE / OD mm |
nominal tolrence of O.D mm |
Ovelity mm |
Wall thickness |
|||
|
|
|
|
Class -1 ( 0.25 Mpa ) |
Class -1 ( 0.32 Mpa ) |
||
|
|
|
|
Min. |
Max. |
Min. |
Max. |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|
|
|
|
|
|
|
|
|
63 |
0.6 |
1.5 |
|
|
2.0 |
2.4 |
|
75 |
0.7 |
1.6 |
2.0 |
2.4 |
2.5 |
2.9 |
|
90 |
0.8 |
1.8 |
2.2 |
2.6 |
2.9 |
3.4 |
|
110 |
1.0 |
2.2 |
2.7 |
3.2 |
3.4 |
3.9 |
