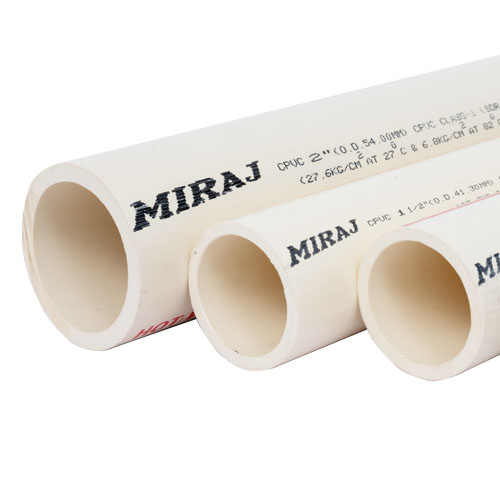

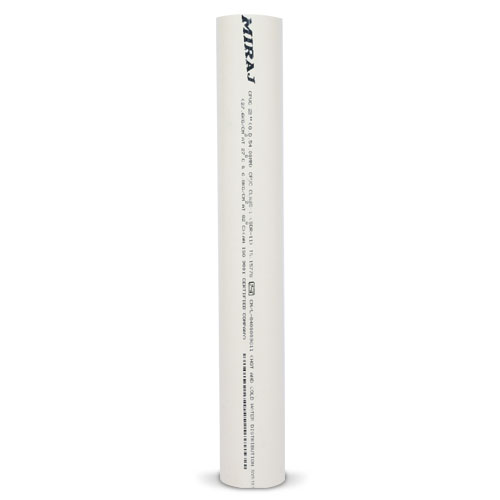

CPVC Plumbing System for Hot & Cold Water

Miraj CPVC PLUMBING SYSTEMS is made of chlorinated polyvinyl chloride & is manufactured as per specification No IS 15778: 2007 of Bureau of Indian Standards. Chlorinated polyvinyl chloride (CPVC) is a thermoplastic produced by chlorination of polyvinyl chloride (PVC) resin which is significantly more flexible and can withstand higher temperatures than standard PVC.


PRODUCT RANGE :

  • Size : ½ “ to 2” .
  • Range : SDR 11 & SDR 13.5.

Applications :

  • High rise residential buildings, complexes and societies.
  • Condominiums.
  • Hotels
  • Offices
  • Villas and Farm-houses.
  • Solar water heaters and geysers.

Advantages :

  • Quick, easy & aesthetic installation
  • No corrosion, leakage, scaling, pitting.
  • Tough & Reliable
  • Cost Effective
  • Low Thermal expansion.
  • Fire Retardant.
  • Lowest bacterial growth.

Manufacturer, Exporter and Supplier of CPVC Plumbing System for Hot & Cold Water



cPVC Pipe Dimension Chart ( IS:15778 ) As Per IS


Nominal Size

Size

Nominal Outside Diameter

Mean O.D.

OD at any Point

SDR 11.0

SDR 13.5

Wall Thick

Wall Thick

Min

Max

Min

Max

Min

Max

Min

Max

15

1/2"

15.9

15.8

16.0

15.8

16.0

1.70

2.20

1.40

1.90

20

3/4"

22.2

22.1

22.3

22.0

22.4

2.00

2.50

1.70

2.20

25

1"

28.6

28.5

28.7

28.4

28.8

2.60

3.10

2.10

2.60

32

1-1/4"

34.9

34.8

35.0

34.7

35.1

3.20

3.70

2.60

3.10

40

1-1/2"

41.3

41.2

41.4

41.1

41.5

3.80

4.30

3.10

3.60

50

2"

54.0

53.9

54.1

53.7

54.3

4.90

5.50

4.00

4.60
