UPVC CASING PIPES
UPVC CASING PIPES

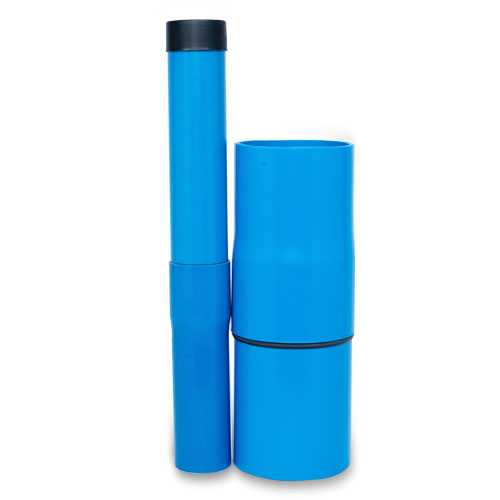

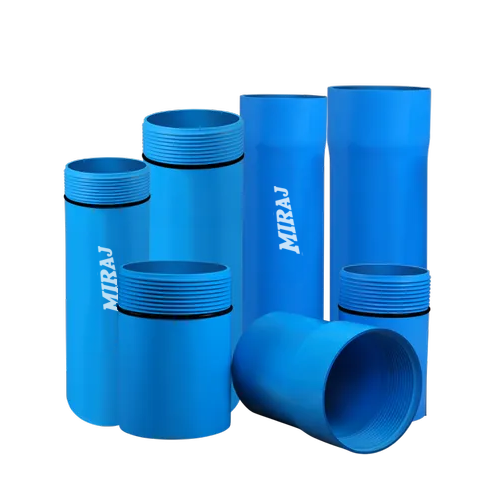

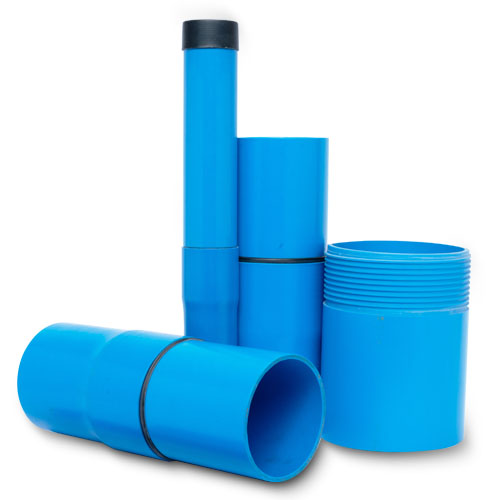

Miraj uPVC Casing pipes are designed as per IS:12818-2010. Miraj casing pipes are suitable for Tube well and bore well applications which ensure better flow of water and low frictional loss.
PRODUCT RANGE :
up to 200mm in CM & CS
Applications :
Domestic, Industrial & Agriculture Tube well and Bore well etc.
घरेलू, औद्योगिक और कृषि नलकूप और बोरवेल आदि।
-
Suitable for all type of soil
-
Resistant
-
Easy Installation
-
Consistent Performance
Features :
- Suitable for all type of soil./ सभी प्रकार की मिट्टी के लिए उपयुक्त
- Maintenance free due to pipes are free from corrosion and resistant to chemical reaction and biological formation./रखरखाव-मुक्त जंग और रासायनिक प्रतिक्रिया के प्रति प्रतिरोधी और जैविक गठन नहीं होता है ।
- Easy installation/joining because pipes having high precision trapezoidal threads and light in weight./आसान स्थापना / जुड़ना क्योंकि पाइप में उच्च परिशुद्धता ट्रैपोज़ाइडल धागे होते हैं और वजन में हल्का है |
- Strong and Durable because using advance technology during manufacturing with special raw materials./मजबूत और टिकाऊ है, क्योंकि विशेष पदार्थो के साथ इसका निर्माण उच्च तकनीक के साथ किया जाता है |
- Power consumption reduces due to pipes having smooth internal surface which reduce friction loss./चिकनी आंतरिक सतह वाले पाइपों के कारण जल घर्षण कम होता है, और बिजली इससे बिजली की खपत कम होती है|
- Resistant to chemicals reaction, bacterial growth, corrosion, Rusting etc./रसायनों की प्रतिक्रिया, जीवाणु वृद्धि, संक्षारण, जंग आदि के प्रति प्रतिरोधी है ।
Dimensions
|
ND |
OD |
OD Socket over Connection |
Wall Thickness in mm |
|
||||||
|
Min |
Max |
Max |
Min |
Max |
|
|||||
|
35 |
42.00 |
42.20 |
46.00 |
3.50 |
4.00 |
|
||||
|
40 |
48.00 |
48.20 |
52.00 |
3.50 |
4.00 |
|
||||
|
50 |
60.00 |
60.20 |
65.00 |
4.00 |
4.60 |
|
||||
|
80 |
88.00 |
88.30 |
94.00 |
4.00 |
4.60 |
|
||||
|
100 |
113.00 |
113.30 |
120.00 |
5.00 |
5.70 |
|
||||
|
115 |
125.00 |
125.30 |
132.00 |
5.00 |
5.70 |
|
||||
|
125 |
140.00 |
140.40 |
150.00 |
6.50 |
7.30 |
|
||||
|
150 |
165.00 |
165.40 |
178.00 |
7.50 |
8.50 |
|
||||
|
175 |
200.00 |
200.50 |
215.00 |
8.80 |
9.80 |
|
||||
|
200 |
225.00 |
225.50 |
243.00 |
10.00 |
11.20 |
|
||||
|
250 |
280.00 |
280.50 |
298.00 |
12.50 |
14.00 |
|
||||
|
300 |
330.00 |
330.60 |
352.00 |
14.50 |
16.20 |
|
||||
|
350 |
400.00 |
400.70 |
428.00 |
17.50 |
19.20 |
|
||||
|
|
|
|
|
|
|
|
||||
Dimensions of "CS" Pipe as per IS : 12818
(Remark : CS Pipes suitable for wells with depths up to 80mtrs and above 80mtrs to 250mtrs CM Pipes Suitable)
|
Sr. No. |
ND |
OD |
OD Socket over Connection |
Wall Thickness in mm |
||
|
Min |
Max |
Max |
Min |
Max |
||
|
1 |
150 |
165.00 |
165.40 |
174.00 |
5.70 |
6.50 |
|
2 |
175 |
200.00 |
200.50 |
211.00 |
7.00 |
7.80 |
|
3 |
200 |
225.00 |
225.50 |
238.00 |
7.60 |
8.80 |
|
4 |
250 |
280.00 |
280.50 |
292.00 |
9.60 |
11.00 |
|
5 |
300 |
330.00 |
330.60 |
352.00 |
11.20 |
13.30 |
|
6. |
350 |
400.00 |
400.70 |
420.00 |
14.00 |
15.50 |
Dimensions of " CD " Pipe as per IS : 12818
Remark : CD Pipes suitable for wells with depths 250mtrs to 450mtrs.
|
Sr. No. |
ND |
Mean OD |
OD Socket over Connection |
Wall Thickness in mm |
||
|
Min |
Max |
Max |
Min |
Max |
||
|
1 |
100 |
113.00 |
113.30 |
125.00 |
7.00 |
7.90 |
|
2 |
115 |
125.00 |
125.30 |
137.00 |
7.50 |
8.50 |
|
3 |
125 |
140.00 |
140.40 |
152.00 |
8.00 |
9.00 |
|
4 |
150 |
165.00 |
165.40 |
180.00 |
9.50 |
10.70 |
|
5 |
175 |
200.00 |
200.50 |
217.00 |
11.80 |
13.60 |
|
6 |
200 |
225.00 |
225.50 |
247.00 |
13.00 |
14.80 |
|
8 |
250 |
280.00 |
280.50 |
304 |
16.00 |
17.60 |
|
9 |
300 |
330.00 |
330.60 |
359 |
19.00 |
21.00 |
|
10 |
350 |
400.00 |
400.70 |
433 |
21.50 |
23.90 |
